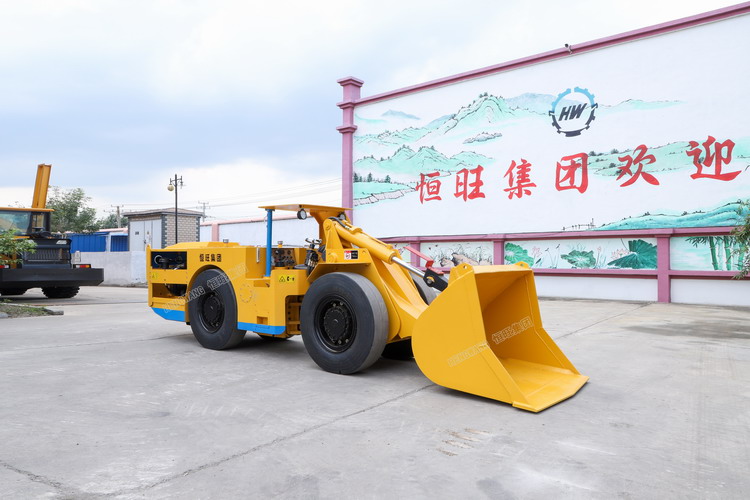

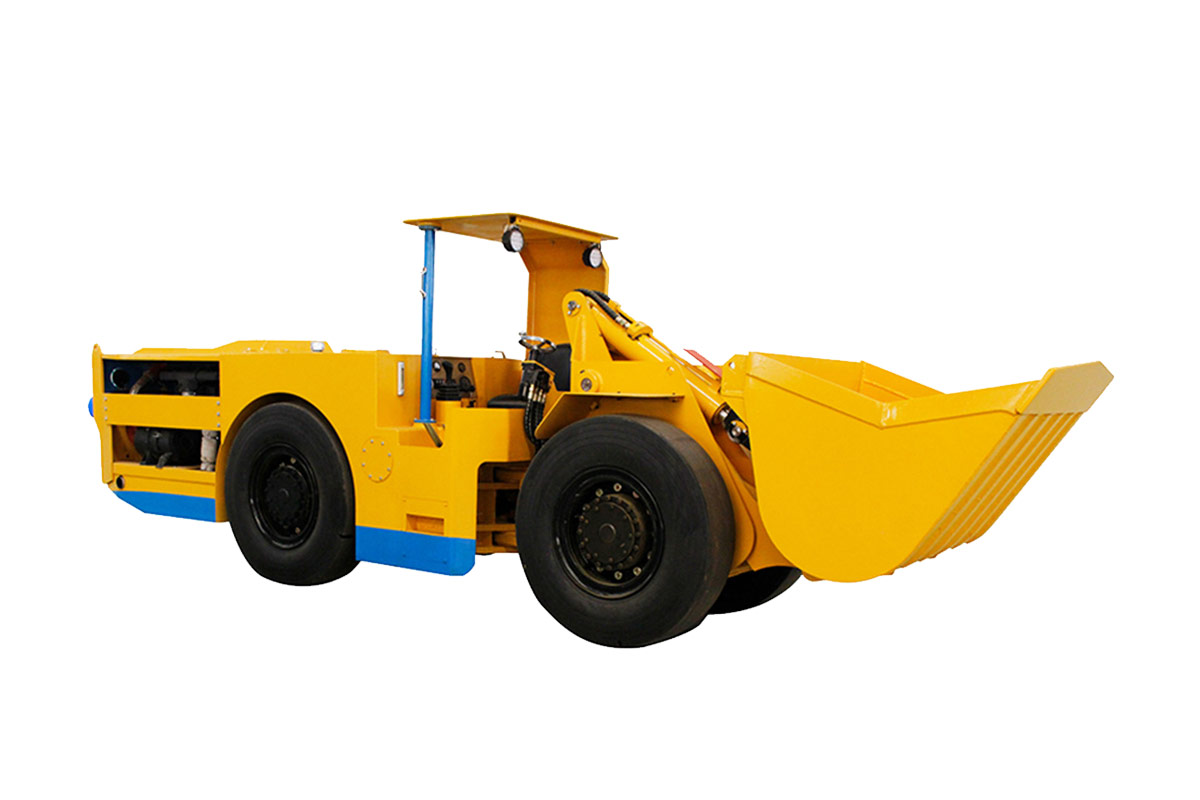

HWJ-1 is a compact and lightweight Load Haul Dump (LHD) for narrow vein mining, easy to operate and maintain.
It has been engineered to optimize machine width, length and turning radius, enabling operation in narrower tunnels for less dilution and lower operational costs.
| Model | HWJ-1 |
| Tramming Size | 6050*1300*2000 |
| Min Ground Clearance | 200mm |
| Max Lift Height | 3250mm |
| Max Unloading Height | 1050mm |
| Weight | |
| Operation Weight | 6750kg |
| Laden Weight | 8750kg |
| Front Axle (Empty) | 2230kg |
| Rear axle (Empty) | 4520kg |
| Front Axle (laden) | 5050kg |
| Rear Axle (laden) | 3700kg |
Whether you need a standard machine or a custom solution, our engineers are ready to assist. Please provide as much detail as possible so we can quote accurately and quickly.
