The telescopic boom loader is to make the two booms of the forklift into a form that can be extended.
When needed, the forklift arm will extend to complete the work that the original forklift arm length cannot reach. When the forklift is not needed The arm retracts to its normal length to facilitate normal work and use.
It is suitable for different sites and different industries, instead of labor, and its compactness makes it a true partner for narrow site operations.

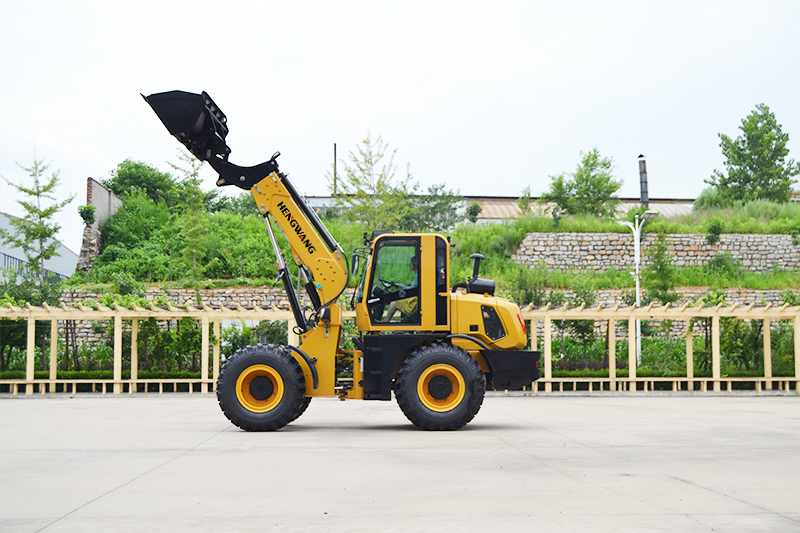

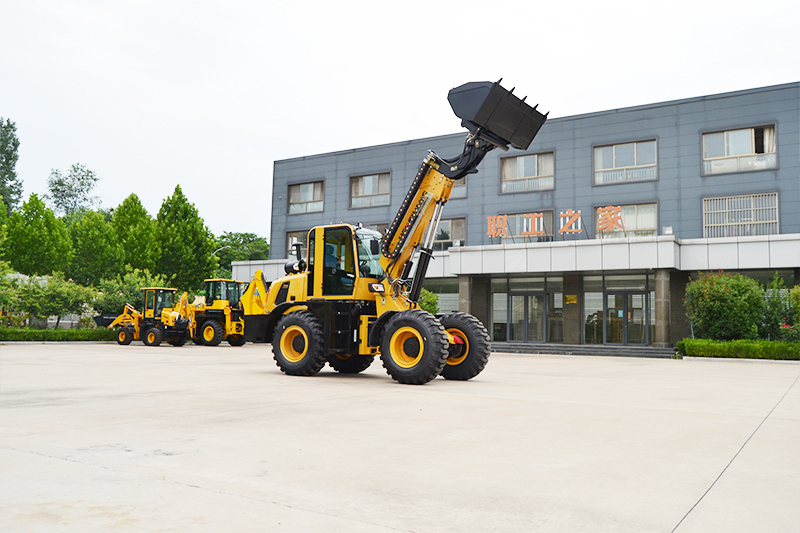

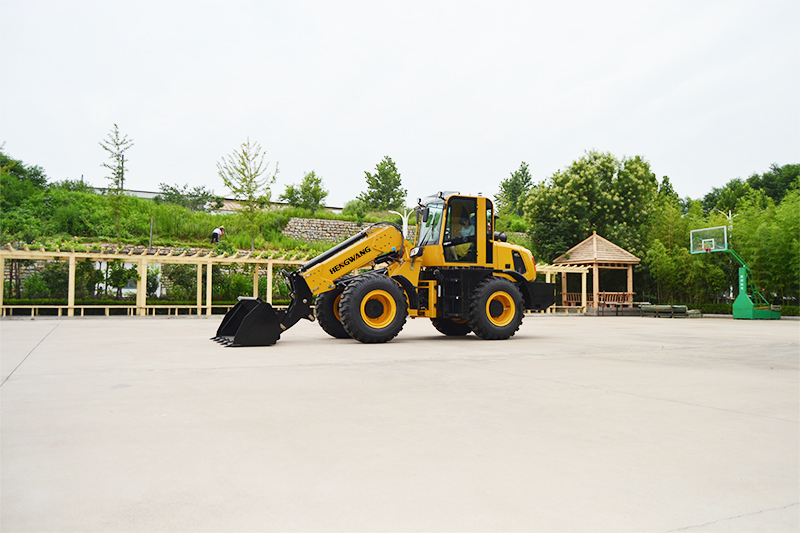

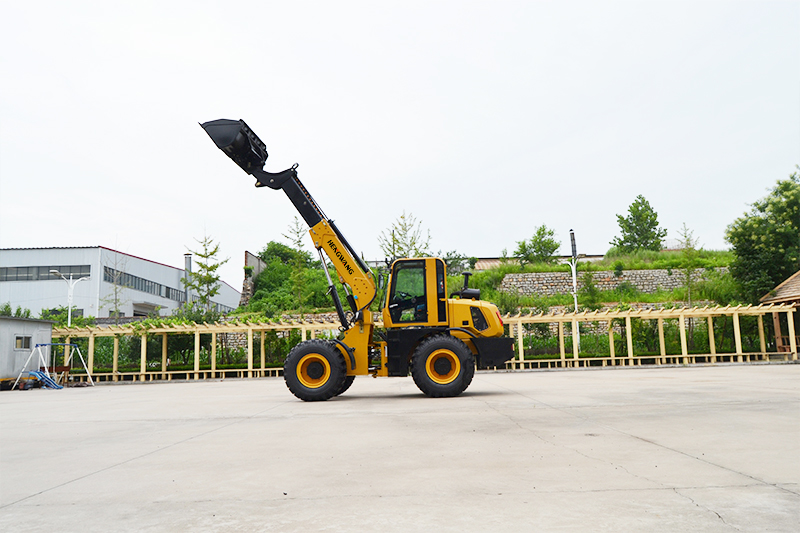

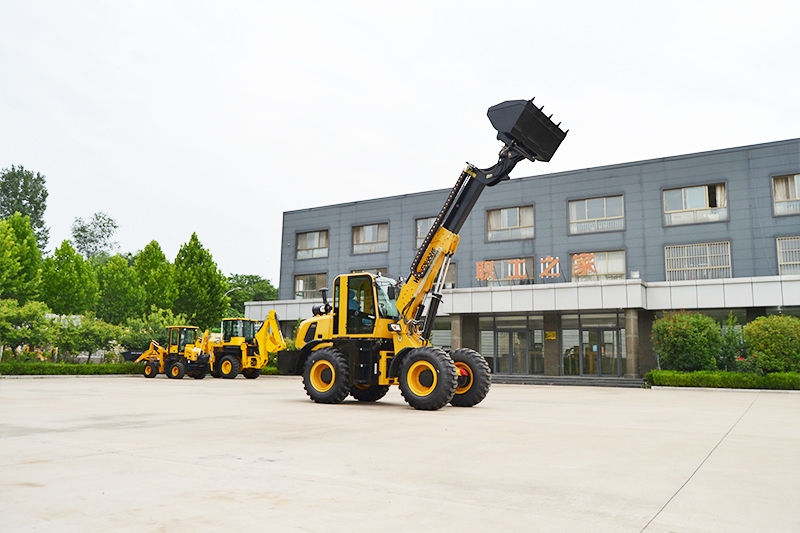

| HW3000 Telescopic Loader | |
| 1.Main technical specification | |
| Bucket Capacity(m³) | 1.5 |
| Operating Weight(kg) | 7600 |
| Bucket Width(mm) | 2300 |
| Bucket type | Heavy-duty bolt on teeth |
| Rated Load(kg) | 3000kg (including attachment or bucket) |
| Wheel base(mm) | 2430 |
| Track(mm) | 1700 |
| Driving Mode | Hydraulic converter, four wheel drive |
| Overall Dimensions(mm) | LxWxH:6860x2300x2860 |
| Lifting to bucket hinge pin Height(mm) | 5300 |
| 2.Engine Details | |
| Model | YUCHAI Engine |
| Engine Type | In-line arrangement, water-cooled, four-cycle diesel,turbocharged Engine |
| Rated Power(kw) | 85 |
| Rated Speed (rpm) | r/p.min |
| Optional Engine | WEICHAI / CUMMINS / YUNNEI |
| 3.Transmission System | |
| Hydraulic converter + gearbox+drive shaft + hub reduction axles | |
| 4.Operating Specifications | |
| Steering System | Articulated Frame with hydraulic power steering |
| Min Turning Radius(mm) | 5800 |
| Driving System | Hydraulic converter, four wheel drive |
| European quick coupling system | |
| Joystick control | |
| 5.Brake System | |
| Service Brake | Safer air assist disc brake braking system |
| Parking Brake | Hand operated(Disc brakes) |
| 6.Tire | |
| Model: | 16/70-24 |
| Width(mm) | 410 |
| Diameter(mm) | 1175 |
| Optional Model | 17.5-25 |
