| Model/ Technical parameter | HW25M | HW25M | HW35M | HW45M | HW60M | HW65M |
| Operating load (kg) | 300 | 450 | 500 | 700 | 850 | 950 |
| Max Speed (km/h) | 9 | 10 | 10 | 12 | 12 | 12 |
| Rated flux (L/min) | 37 | 50 | 60 | 62.5 | 75 | 75 |
| Tire (track) model | 23×8.5-15 | 27×8.5-15 | 8.5-15 | 10-16.5 | 12-16.5 | 12-16.5 |
| Rated power (Kw) | 18.4 | 22 | 29.5 | 37 | 45 | 55 |
| Fuel tank capacity (L) | 25 | 45 | 60 | 70 | 70 | 80 |
| self weight bucket (kg) | 1500 | 2000 | 2300 | 2700 | 2800 | 3000 |
| Bucket capacity (m3) | 0.2 | 0.3 | 0.3 | 0.4 | 0.4 | 0.5 |
| Overall operating height (mm) | 3126 | 3430 | 3300 | 3980 | 4130 | 4130 |
| Dumping angle at maximum height (° ) | 36 | 43 | 40 | 40° | 40 | 40 |
| Dumping height (mm) | 1882 | 1971 | 2050 | 2380 | 2400 | 2400 |
| Dumping reach (mm) | 458 | 477 | 790 | 750 | 750 | 750 |

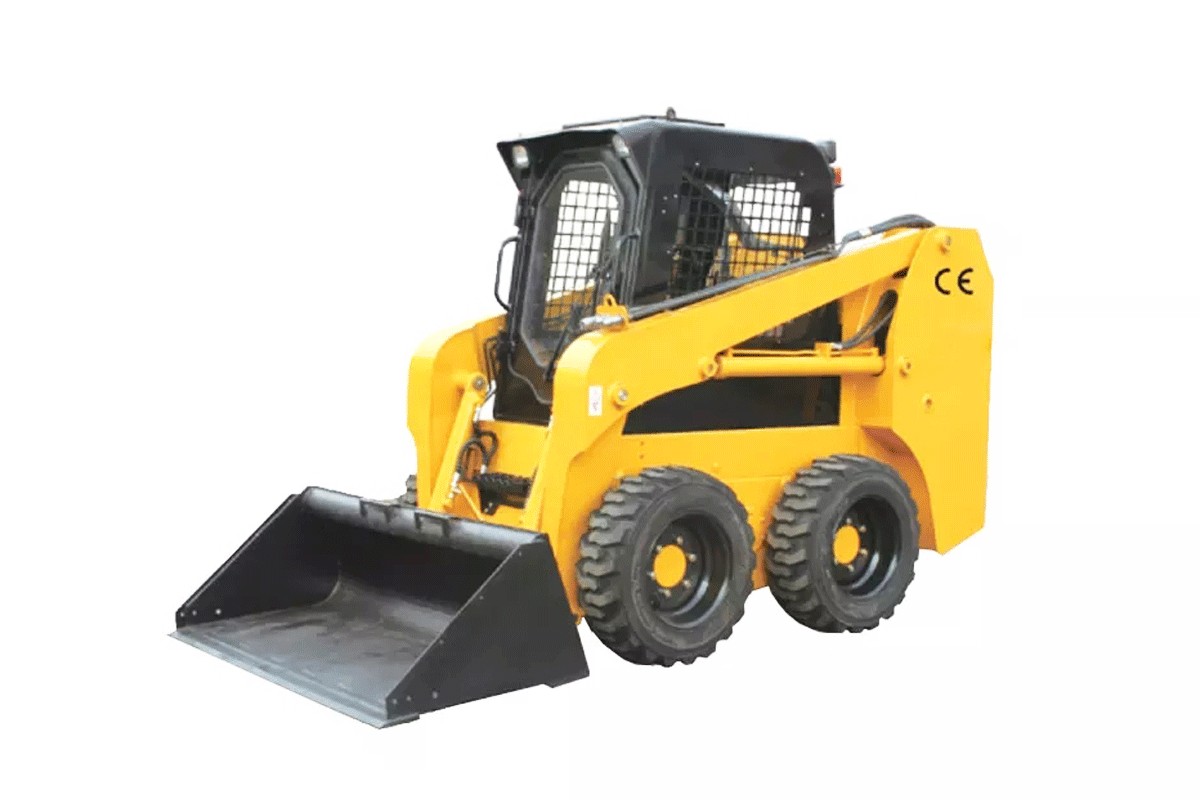

● This series features a sleek design, narrow host width, and excellent maneuverability. It utilizes a luffing working arm to ensure optimal load-bearing capacity within a smaller width.
● Among all sliding machine products, this series boasts the smallest main machine width, meeting the demands of specialized operations. Additionally, the M series offers enhanced ultra-low height products, with the lowest height measuring only 1.4 meters.
● The M series products incorporate high-quality hydraulic components sourced from Europe and America. The control system utilizes a pilot servo system, delivering precise and rapid responsiveness. It represents the ideal option for operations in confined spaces.
Inquire now for the best price.
Whether you need a standard machine or a custom solution, our engineers are ready to assist. Please provide as much detail as possible so we can quote accurately and quickly.
Undertake Projects, Choose Hengwang, Prosper in Business!
