| model | XY-3L | |
| Drilling depth | 600 | m |
| Opening diameter | 325 | mm |
| final hole diameter | 75 | mm |
| Drill pipe diameter | 42-50 | mm |
| Drilling angle | 90-75 | ° |
| Engine power | 42 | kw |
| weight | 5000 | kg |
| Machine size | 3800*1950*2700 | mm |
| Vertical shaft speed | 32-1057 | r/min |
| Vertical axis travel | 600 | mm |
| Single rope lifting force | 3000 | kg |
| Single rope lifting speed | 0.3-1.9 | m/s |
| Wire rope diameter | φ12.5 | mm |
| Wire rope capacity | 65 | m |
| Rated load | 18 | Ton |
| effective height | 11 | m |
| flow | 95 | L/Min |
| greatest pressure | 1.2 | Mpa |
| Optional configuration | Walking Gantry | |
Main features:

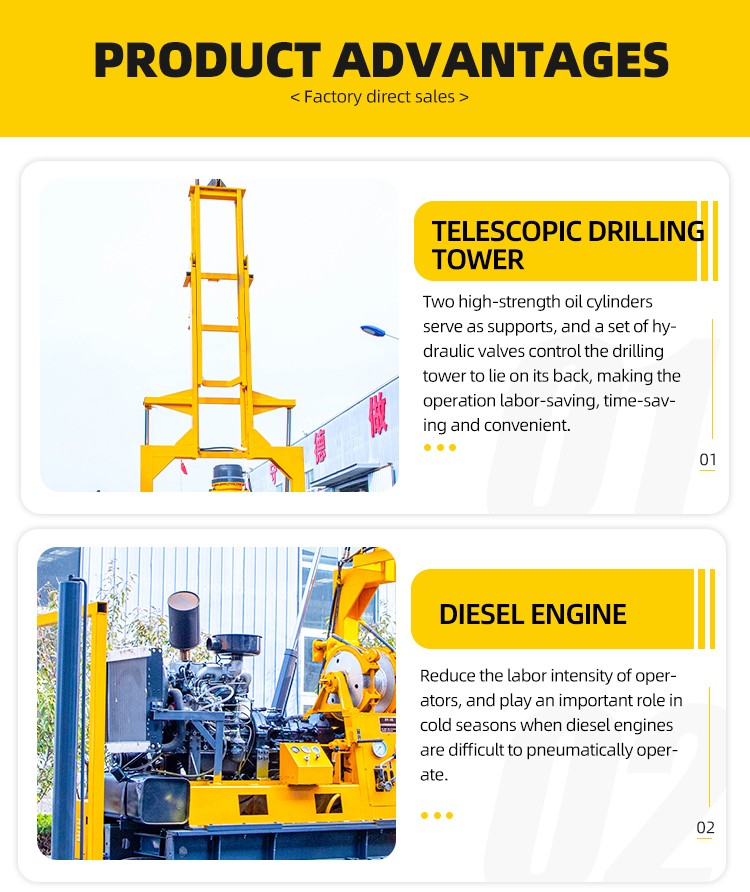

1. Incorporates a hydraulic automatic drilling mechanism, enhancing drilling efficiency and reducing labor intensity.
2. Hengwang water well drilling rig is engineered with a focus on optimal compatibility between the engine and hydraulic system, resulting in improved performance and a 7% reduction in fuel consumption.
3. Features a compact and lightweight fuselage design, enabling operation in both plains and mountainous areas with minimal damage to vegetation.
Please note that due to the continuous updates and advancements in technology, the technical parameters and configurations are subject to change upon actual delivery.

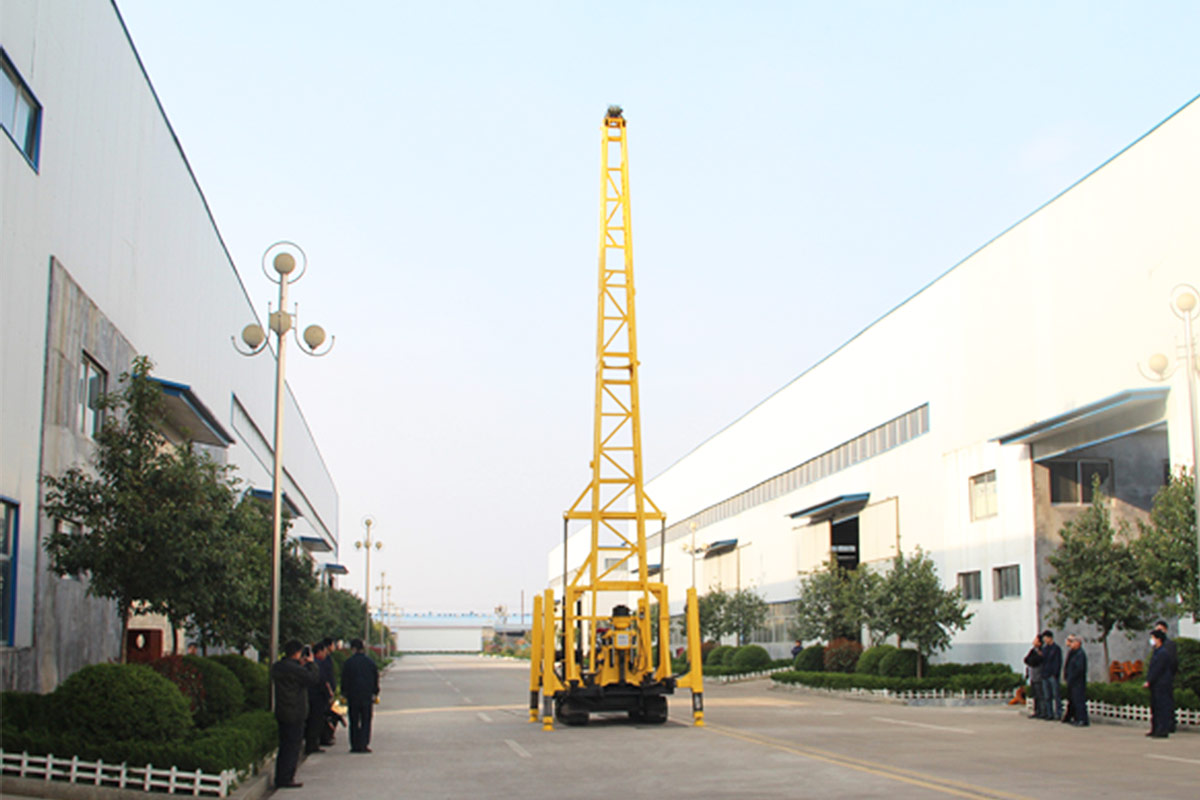

Hengwang water well rig is a specialized and professional equipment designed specifically for drilling water wells. It is primarily used for industrial drilling, low-temperature drilling, and agricultural drilling applications. Additionally, Hengwang offers wireline coring rigs that are suitable for geological exploration and SPT soil testing purposes.
Whether you need a standard machine or a custom solution, our engineers are ready to assist. Please provide as much detail as possible so we can quote accurately and quickly.
