Robust and versatile, the rig can be used in a variety of applications: small water wells, geothermal applications, soil surveys, coring and micropiles. The rig is designed to safely use a variety of drilling methods: direct circulation, downhole hammer drilling and auger drilling.
Main feature:

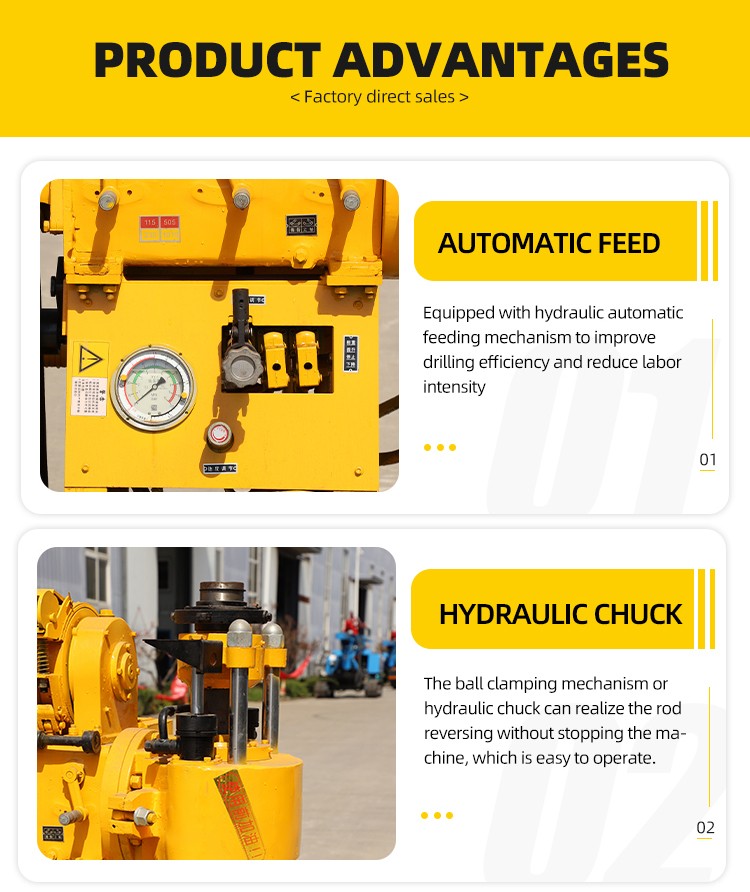

1. Adopt hydraulic automatic drilling mechanism to improve drilling efficiency and reduce labor intensity;
2. Hengwang water well drilling is specially designed for the perfect match between the engine and the hydraulic system, which improves performance and reduces fuel consumption by 7%;
3. The fuselage design is compact and lightweight, which can work in plains and mountainous areas with less damage to vegetation.
| model | HW230YY | |
| Drilling depth | 230 | m |
| Opening diameter | 500(Soil)/220(Rock) | mm |
| final hole diameter | 75 | mm |
| Drill pipe diameter | 42-50-60 | mm |
| Drilling angle | 90-75 | ° |
| Engine power | 15 | kw |
| weight | 950 | kg |
| Machine size | 2700*900*1500 | mm |
| Vertical shaft speed | 64/128/287/557 | r/min |
| Vertical axis travel | 450 | mm |
| Single rope lifting force | 2500 | kg |
| Single rope lifting speed | 0.12-0.95 | m/s |
| Wire rope diameter | φ12.5 | mm |
| Wire rope capacity | 35 | m |
| Rated load | 18 | Ton |
| effective height | 6.5 | m |
| flow | 145 | L/Min |
| greatest pressure | 2 | Mpa |
| Optional configuration | Motor | |
This product is continuously improved as technology advances. The difference between the parameters and the actual product is subject to the actual product.
