Remarks:
This product is continuously improved with the advancement of technology. The difference between the parameters and the actual product is subject to the actual product.
Submit the form for more parameters and quotes.
Parameter
| model | HW160YY | |
| Drilling depth | 160 | m |
| Opening diameter | 300 | mm |
| final hole diameter | 75 | mm |
| Drill pipe diameter | 42-50 | mm |
| Drilling angle | 90-75 | ° |

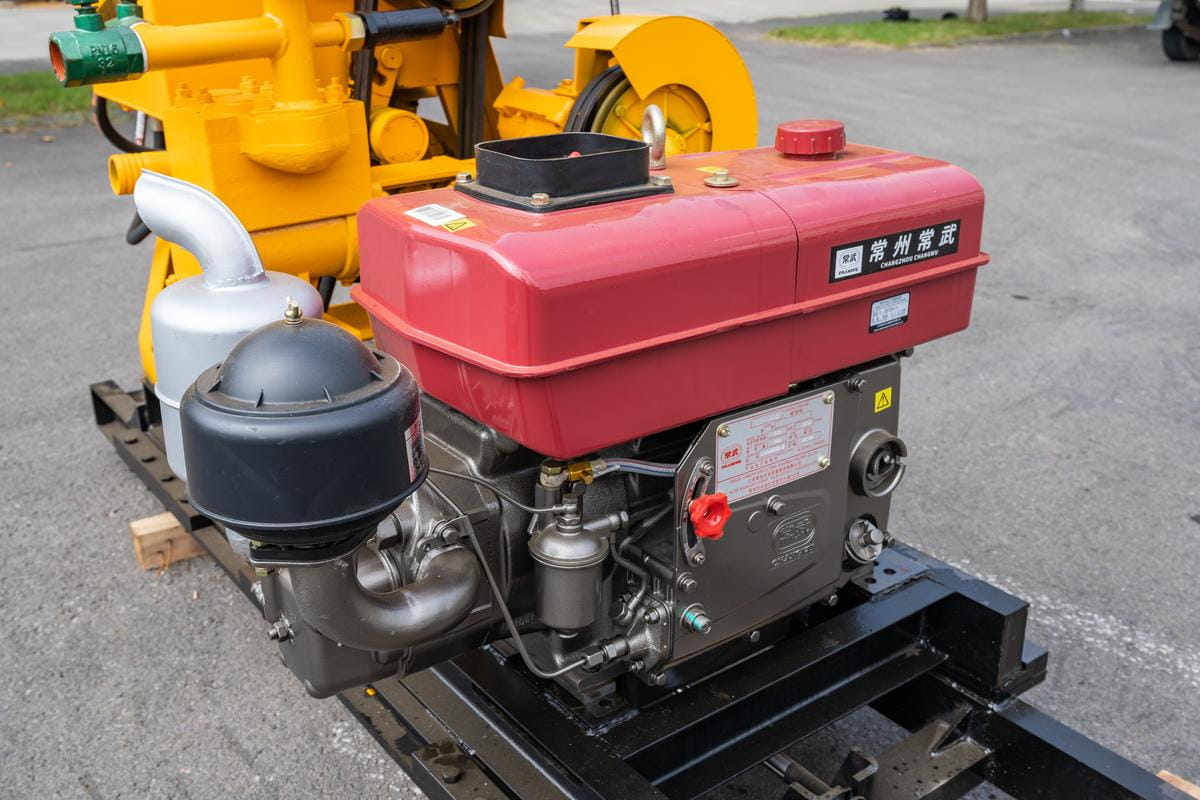

| Engine power | 13.2 | kw |
| weight | 850 | kg |
| Machine size | 2400*800*1300 | mm |
| Vertical shaft speed | 142/285/570 | r/min |
| Vertical axis travel | 450 | mm |
| Single rope lifting force | 2000 | kg |
| Single rope lifting speed | 0.41-1.64 | m/s |
| Wire rope diameter | φ9.3 | mm |
| Wire rope capacity | 27 | m |
| Rated load | 18 | Ton |
| effective height | 6.5 | m |
| flow | 95 | L/Min |
| greatest pressure | 1.2 | Mpa |
| Optional configuration | Walking Gantry | |
Main feature:
1. Although this rig is modest in size and can operate in limited locations, it is very powerful.
2. Because of its robust engineering and reliability, it is capable of drilling in difficult conditions to depths that are often beyond rigs of this size.
3. According to the needs of customers, the rig can be set to various configurations.

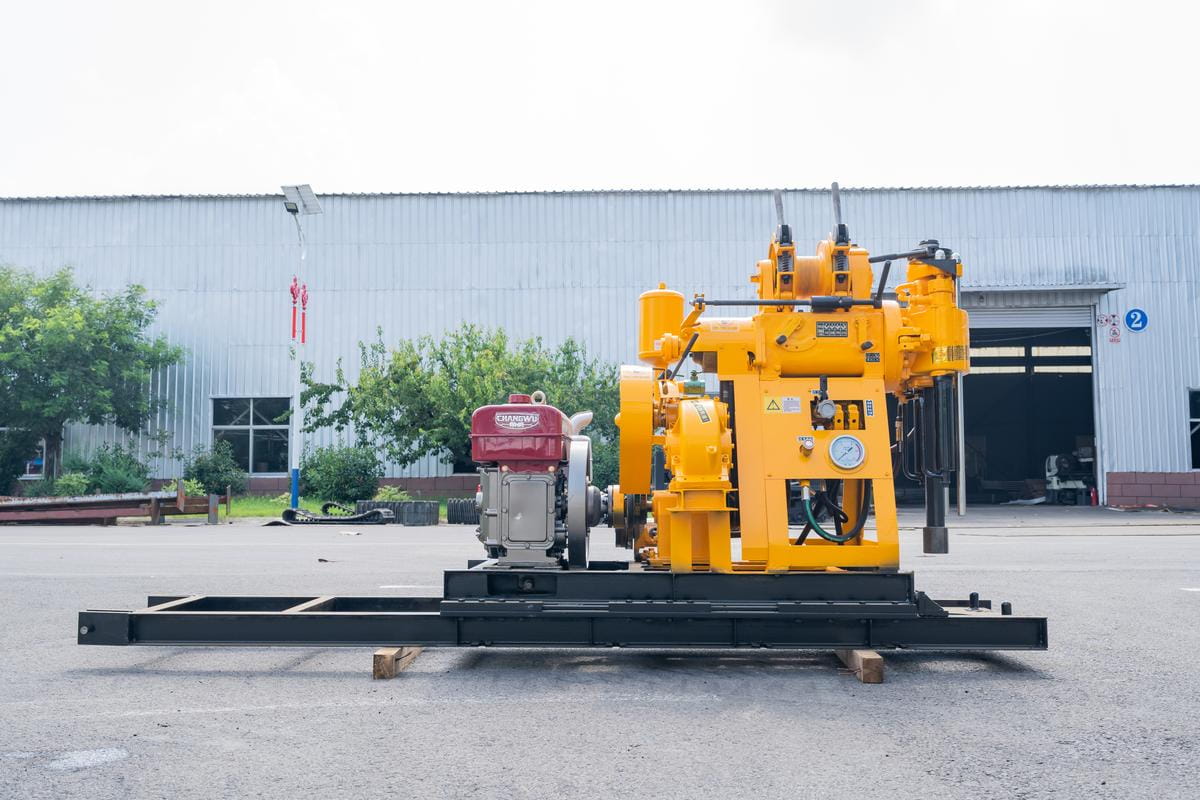

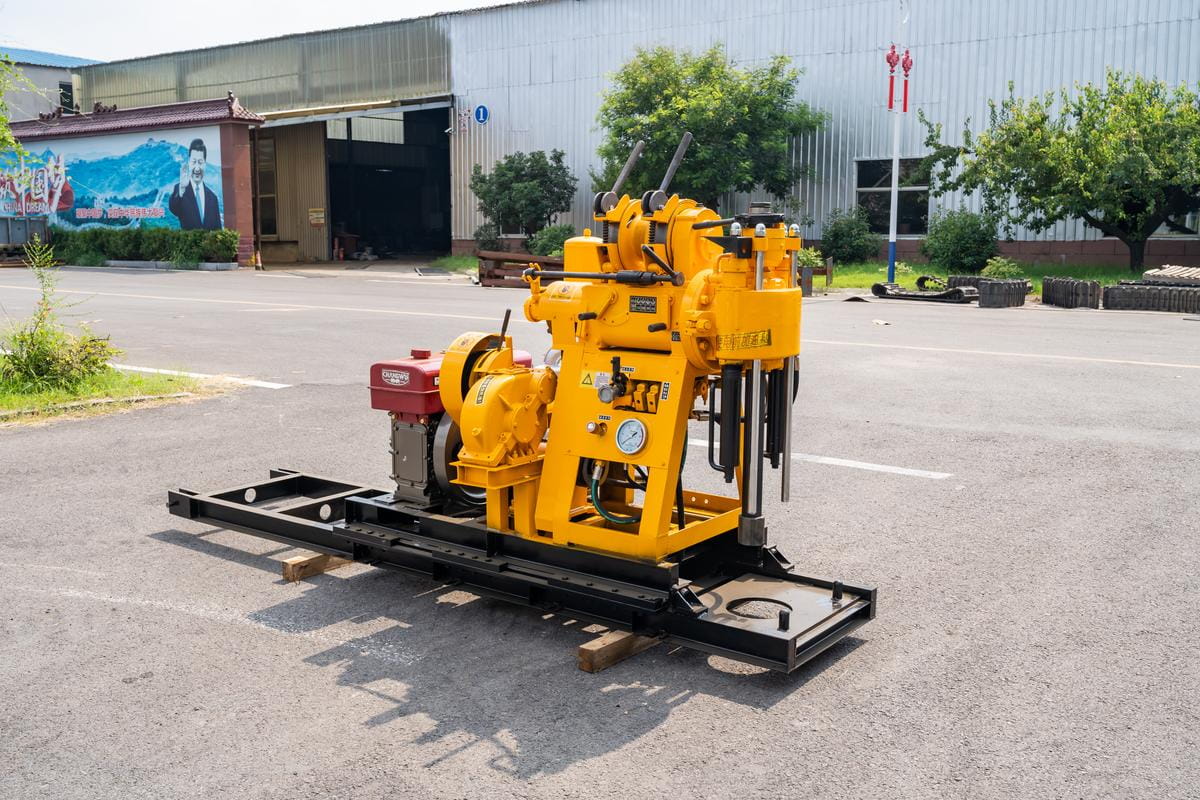

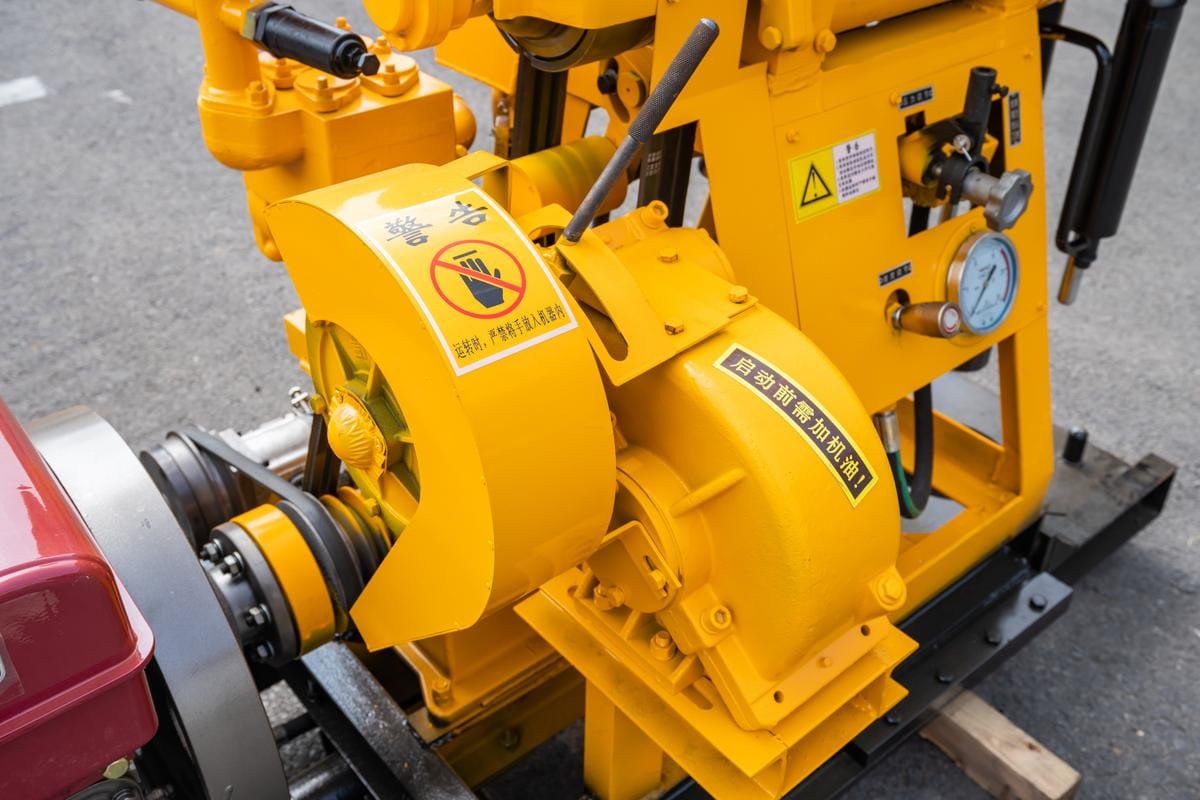

Hengwang Group water well drilling rig is a professional water well drilling equipment.
HW-160YY is mainly used for industrial drilling, low temperature drilling and agricultural drilling.
Wireline coring rigs can be used for geological exploration as well as SPT soil testing.
