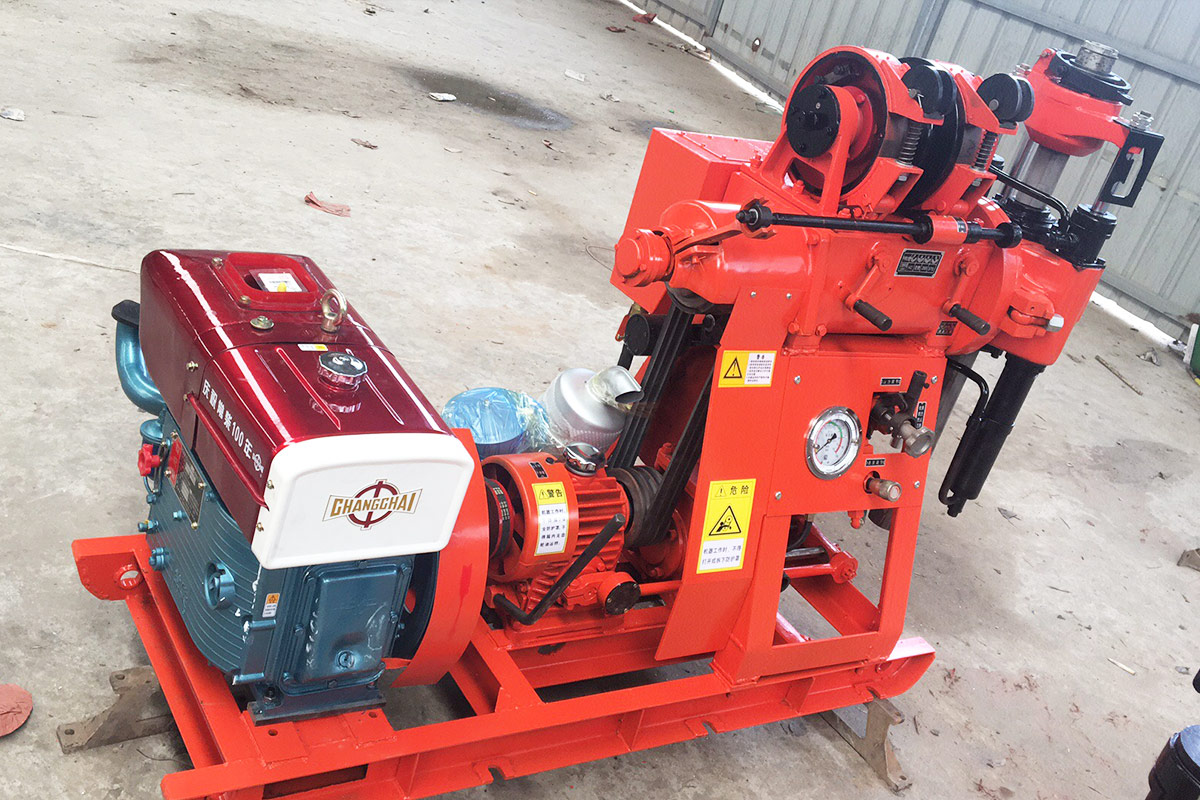

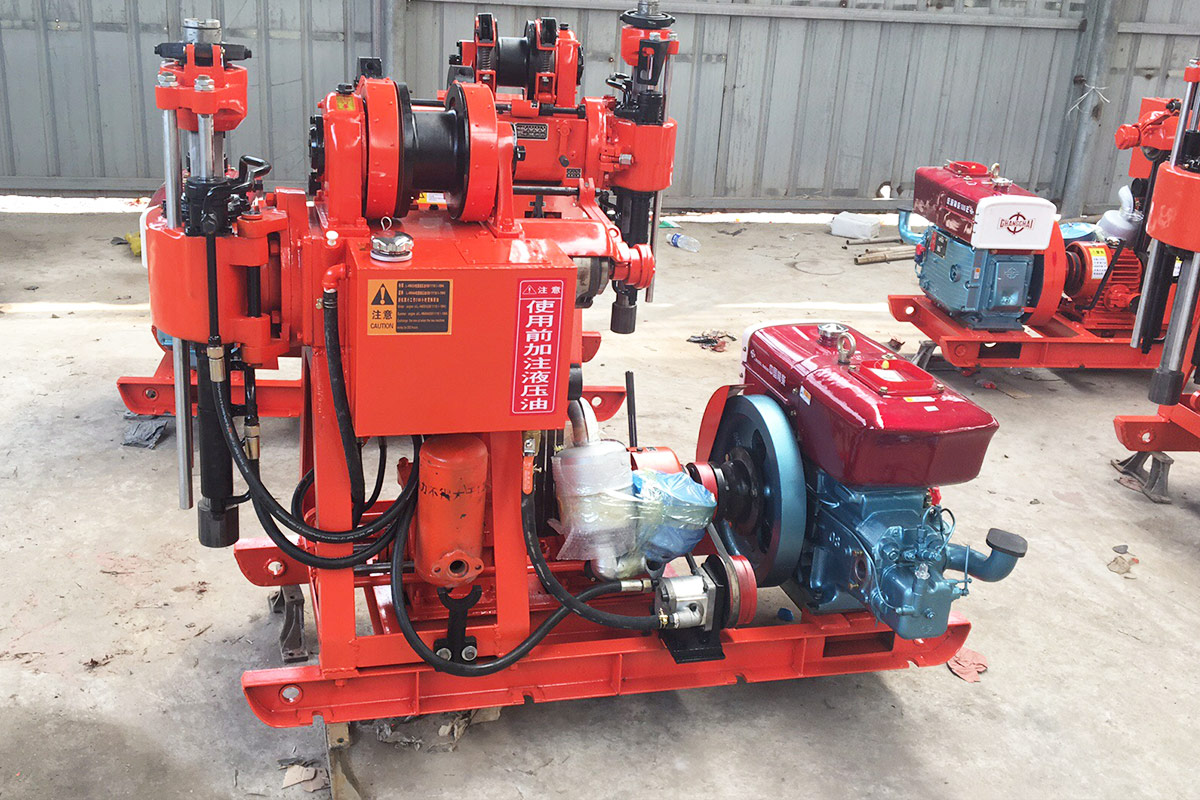

Feature:
1. Equipped with hydraulic automatic feeding mechanism to improve drilling efficiency and reduce labor intensity.
2. The ball clamping mechanism is used instead of the chuck, which can realize non-stop, convenient operation, safety and reliability.
3. The hoist is equipped with a frame to form a double-sided support star structure, which can withstand strong impacts.
Model | XY-1A | ||
Drilling depth | 180m | Open hole dia | φ75-150mm |
End hole dia | 75-46mm | Main rod | 53/59*4200mm |
Drill rod dia | φ50mm φ42 | Drill angle | 90°～75° |
Supporting power | 13.2Kw/2200/r/min | Weight/size | 920kg/2400*950*1400 |
Drill mast | |||
Rated load | 2t | Effective height | 6m |
Tower leg specifications | 73mm | ||
Winch parameters | |||
Single rope lifting force | 9.6kN | Single rope lifting speed | 0.3. 0.8. 1.29. 1.96. 2.23m/s |
Roll diameter | φ140mm | Rope diameter | 27m |
Due to the continuous update and progress of technology, the difference between the technical parameters and configuration and the actual product is subject to the actual delivery.
