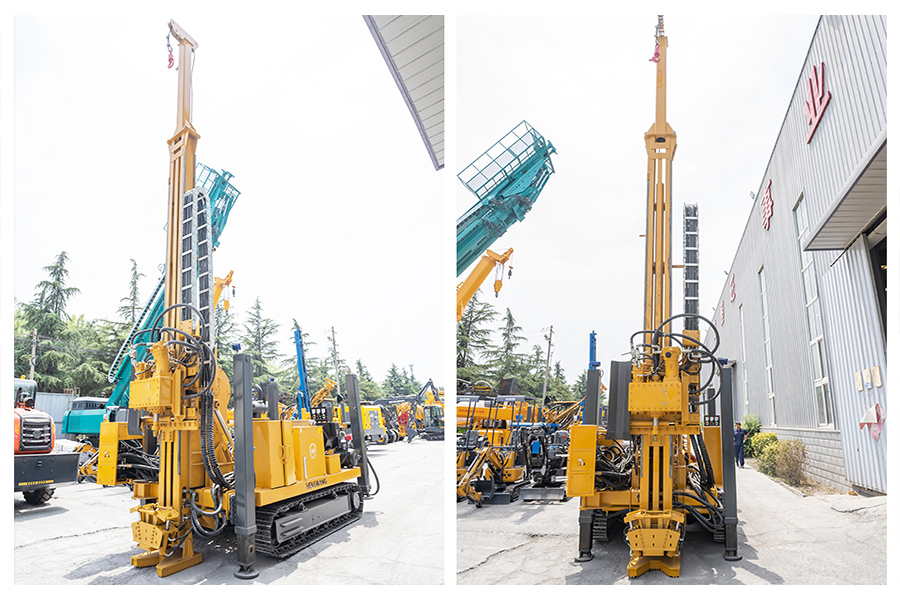

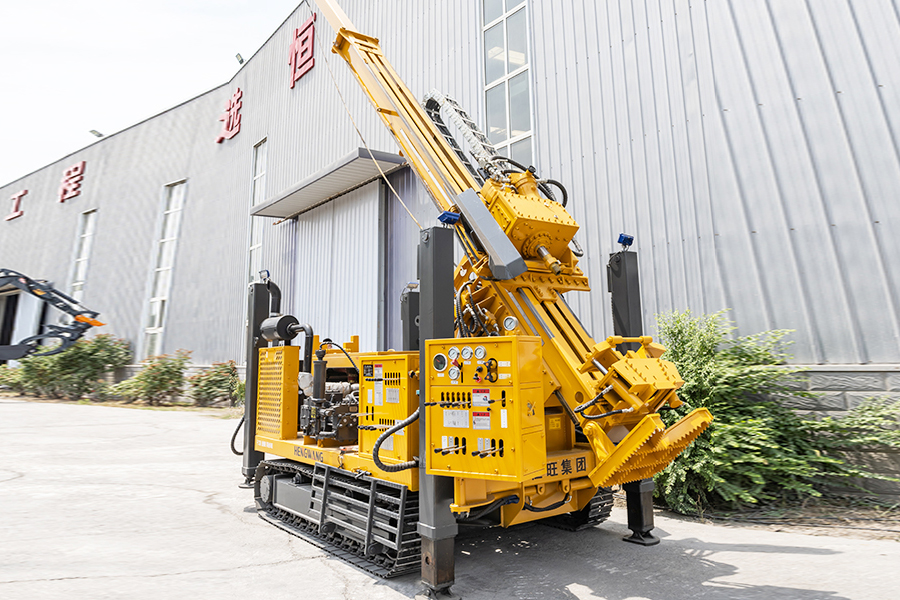

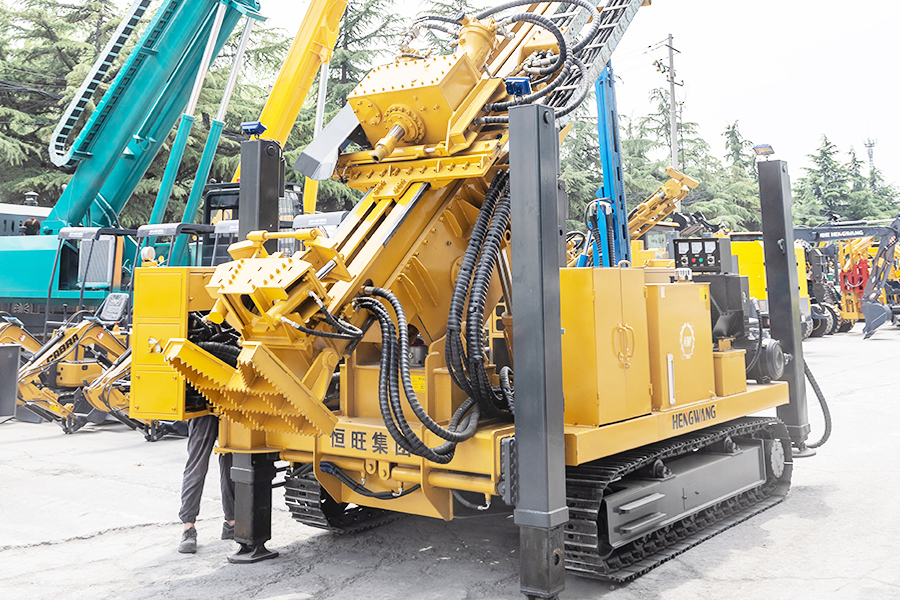

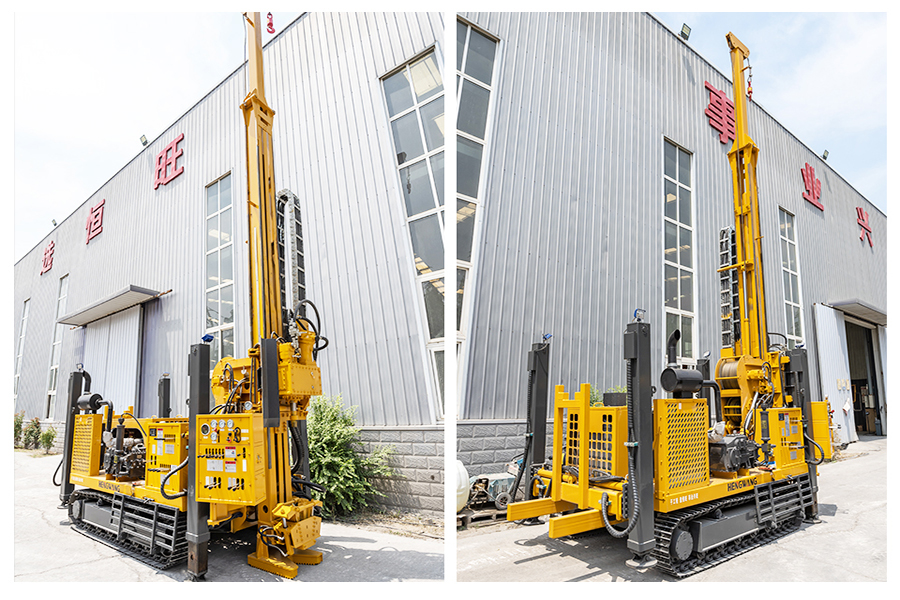

Discover the power and precision of the HW-1500GL Fully Hydraulic Wireline Core Drilling Rig. Engineered for ultimate performance, this rig
takes on the most challenging terrains with ease, delivering superior core samples every time. The HW-1500GL's advanced hydraulic system
provides unmatched control and efficiency, allowing for deeper drilling at faster speeds without compromising on safety or stability. Its cutting-edge
wireline technology ensures quick and easy core retrieval, reducing operational downtime and maximizing productivity. Built with a robust frame
and high-quality components, the HW-1500GL is designed to withstand extreme conditions, ensuring reliability and longevity on every project.
Elevate your drilling operations with the HW-1500GL—a machine that combines strength, accuracy, and innovation to achieve outstanding results.
| model | HW-YDX-1500GL |
| Drilling ability | |
| caliber | HTW-NTW-BTW |
| depth | 750-1500-2000(M) |
| Hydraulic system | |
| preset pressure | 28(MPA) |
| Rated flow | 350(L/nin) |
| Cooling type | Air cooling + Water cooling |
| Engine | |
| Brand | Weichai |
| Type | Turbocharged |
| Rated rotary speed | 2400(RPM) |
| Rated power | 150（KW） |
| Power head | |
| Maximum torque | 1000-3500(N.M) |
| Maximum rotary speed | 1300(RPM) |
| Feeding stroke | 3500(MM) |
| Drilling tower | |
| Type | Ground contact integrated tower |
| Drilling angle | 45-90(°) |
| Lifting force | 20(T) |
| Feeding force | 10(T) |
| Winch | |
| Lifting force | 1000(KG) |
| Rotary speed | 100-300(RPM) |
| Wire rope diameter | 6(MM) |
| Rope capacity | 1500(M) |
| walk | |
| type | Manual + remote control |
| Walking speed | 3.5(KM/H) |
| Single machine climbing angle | 45(°) |
| hydraulic mud pump | |

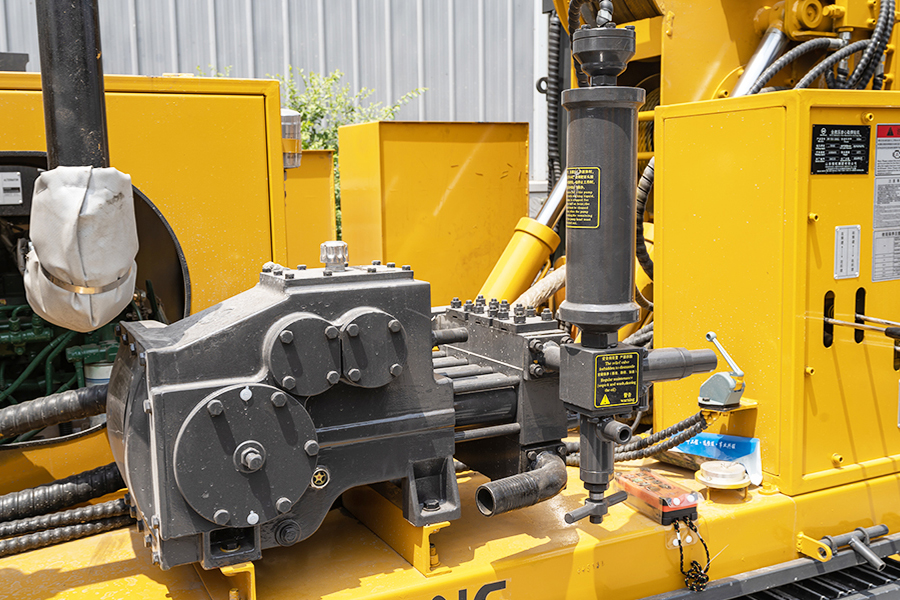

| mud pump | Contains Bw-250 mud pump |
| flow | 0-250(L/in) |
| pressure | 0-7(MPA) |
| Shipping dimensions | 6000*2100*2400(MM) |
| Total Weight | 10.5(T) |
Whether you need a standard machine or a custom solution, our engineers are ready to assist. Please provide as much detail as possible so we can quote accurately and quickly.
