Crane is a kind of machine widely used in ports, workshop, electrical and constructional site. The crane is a general name of hoisting machine. Frequently called crane is auto crane, crawler crane and tyre crane. Crane is used in hoisting equipment, emergency rescue, lifting, machinery, the rescue.
1.Leading performance: the boom length in full extension is 32m, the performance leading in 5%. The grade ability is 40%, which make the machine have good road adaptability.
2.The unique stretch and retract technique avoids the bend of the core pipe and cylinder and the break of the boom caused by misoperation, improving the safety of the operations.

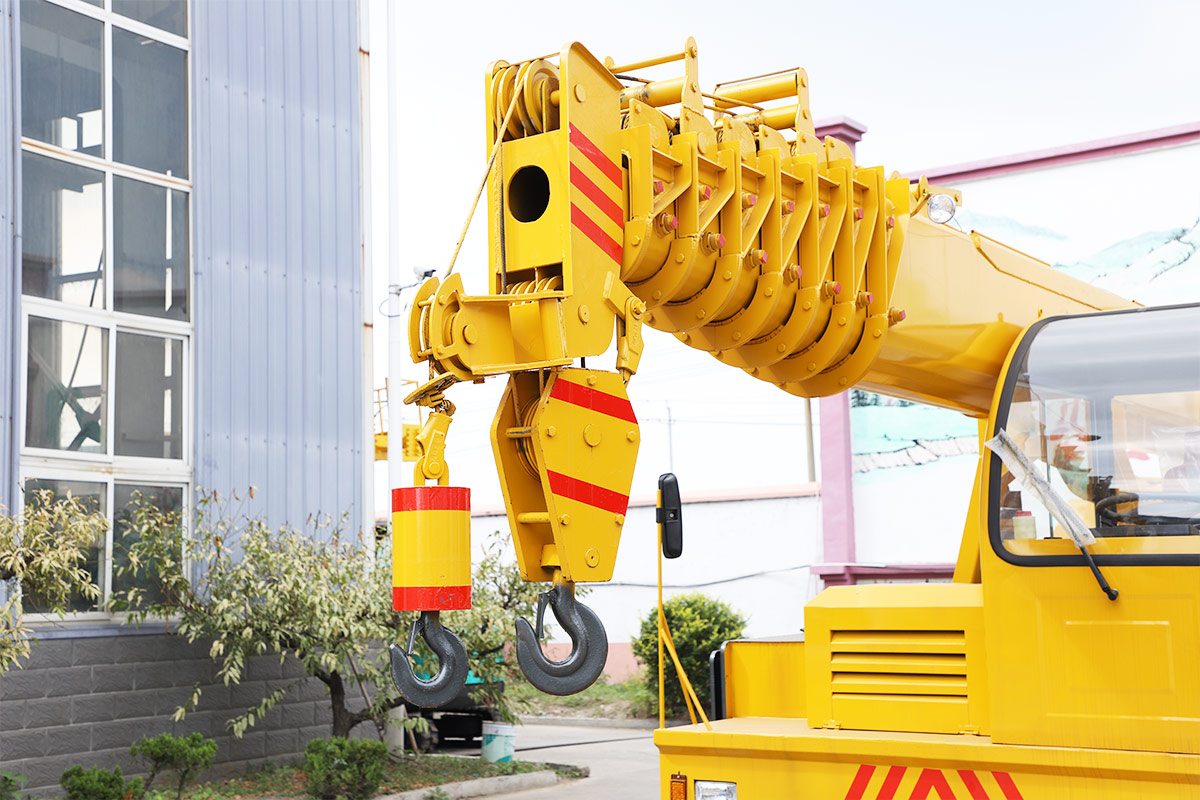

3.The innovative jib system adopts embedded block, plug-in boom head and octagon jib, which has excellent lifting performance and safe and reliable lifting work.
4.Six unique technologies supply the quality assurance, and make the products keep a high value.
5.The control system is optimized by 8 patents; lifting, rotation, and luffing are easy and reliable.
| Model | HWQY10T |
| Weight | 11000kg |
| Overall Dimensions | 8.2m*2.06m*3m |
| Wheelbase | 2.33m |
| Max. loading capacity | 10000kg |
| Max. lifting height | 28m、30m |
| Engine model | 4102 |
| Gearbox model | 6-speed |
| Power (kw hp) | 88kw120hp |
| Emission Standards | China Ⅲ |
| Braking System | Air brake |
| Steering machanism | Hydraulic Power Steering |
Quote now for the best price.
Whether you need a standard machine or a custom solution, our engineers are ready to assist. Please provide as much detail as possible so we can quote accurately and quickly.
