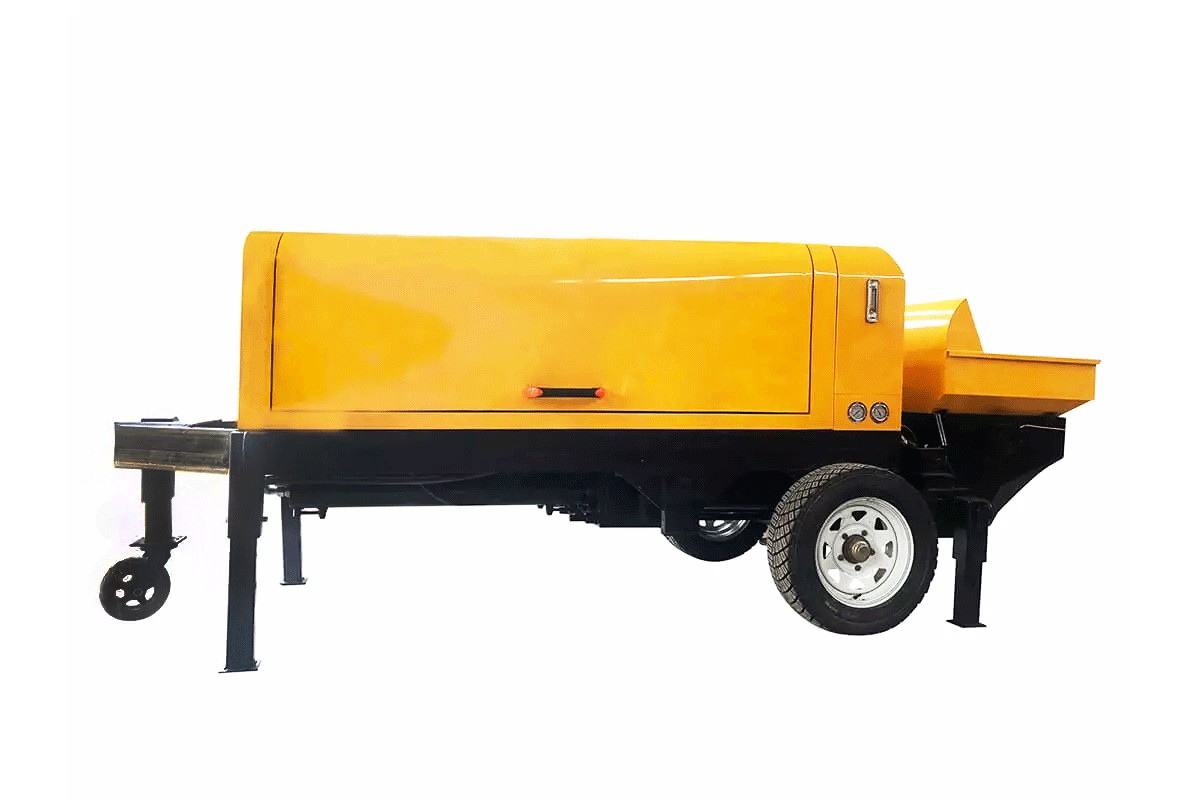

HW40-55 Concrete Pump

Factory Direct
Training on Arrival
One-year warranty
Rated Power: 50Kw
Aggregate size: 40mm
Output: 40m³/h
Product Detail

1. HW40-50 concrete pump is light in weight, equipped with walking wheels,convenient to move and unique in design.

2. Easy movement and positioning, smooth operation, simple operation, long service life.

3. Pump delivery system is 20 times of manual construction, saving time and labor costs, improve labor productivity.

4. Can be placed directly on the floor site pouring, and not by pumping height limit.


Model

HW40-55

Power

50kw

Voltage

380V

Vertical delivery distance

100m

Horizontal delivery distance

200m

Output

40m3/h

Max.Aggregate size

40mm

Outlet diameter

180mm

Cylinder stroke

1500mm

Pipe diameter

150mm

Dimension

4500*1800*1700mm

Weight

3200kg

Let's Discuss Your Project

Whether you need a standard machine or a custom solution, our engineers are ready to assist. Please provide as much detail as possible so we can quote accurately and quickly.

Undertake Projects, Choose Hengwang, Prosper in Business!

GET EXPERT QUOTE
