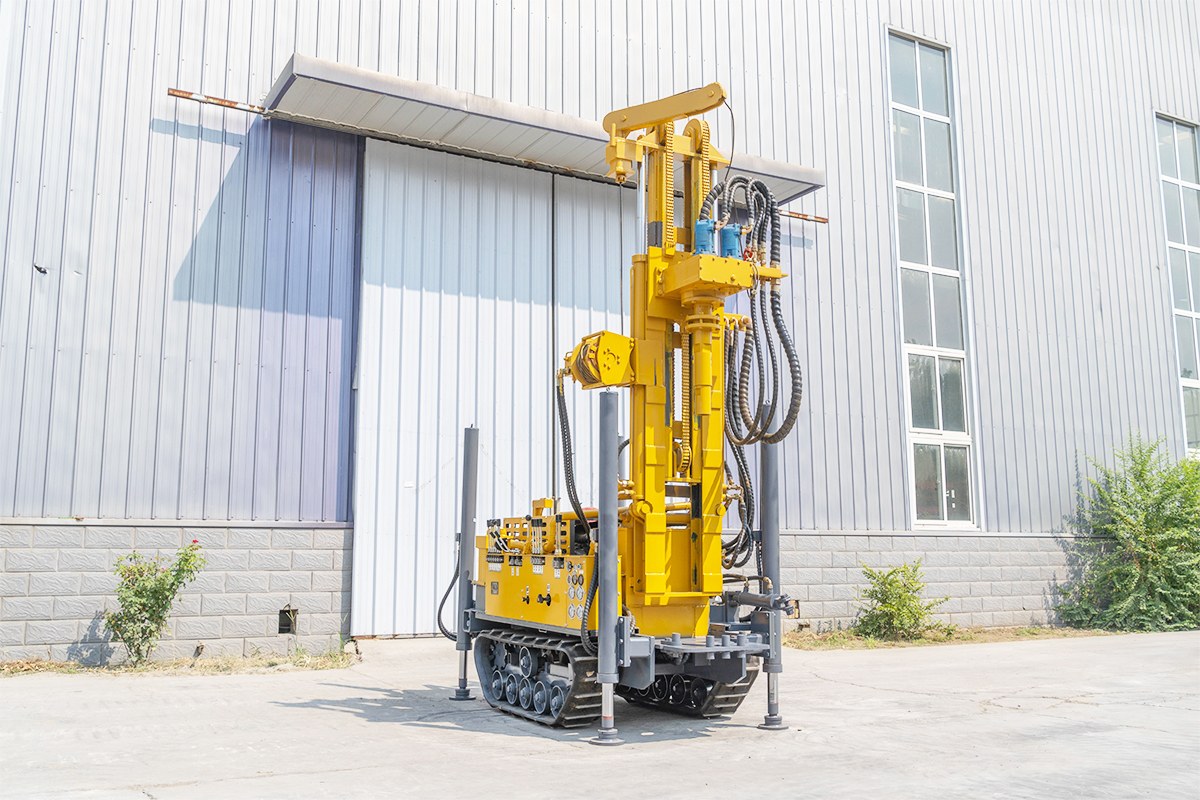

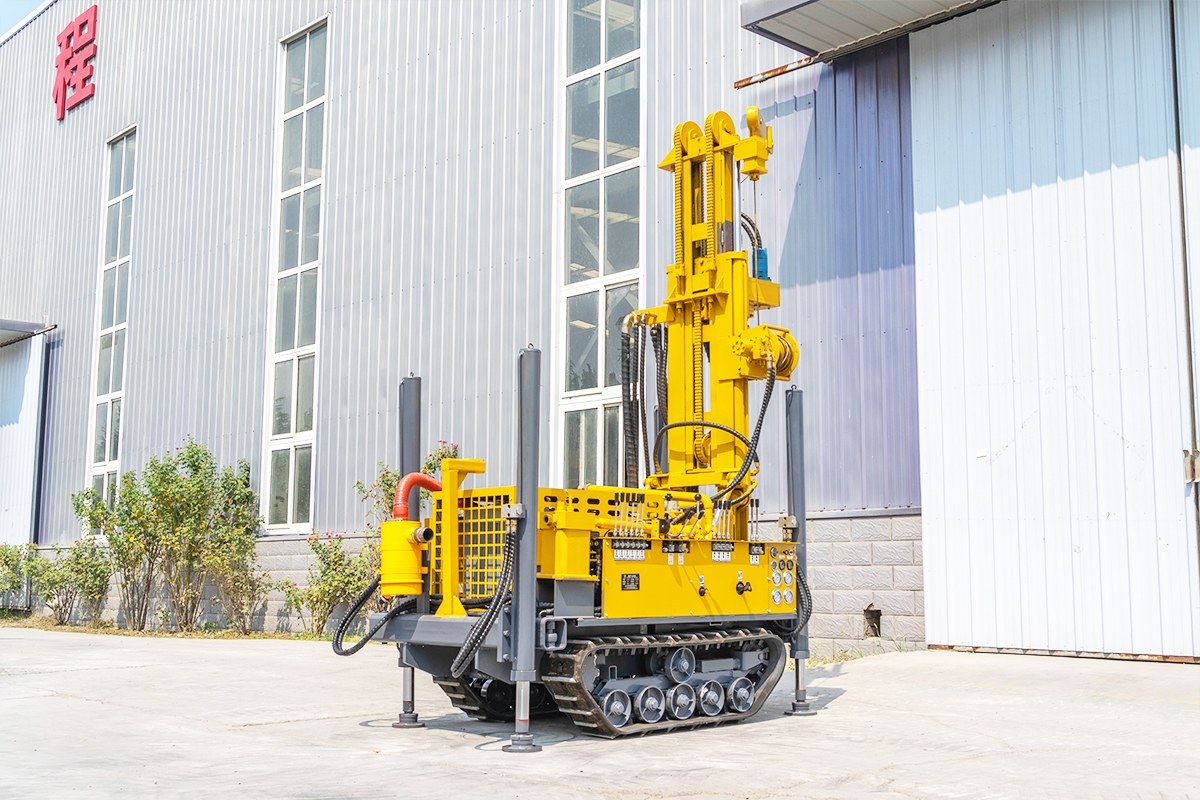

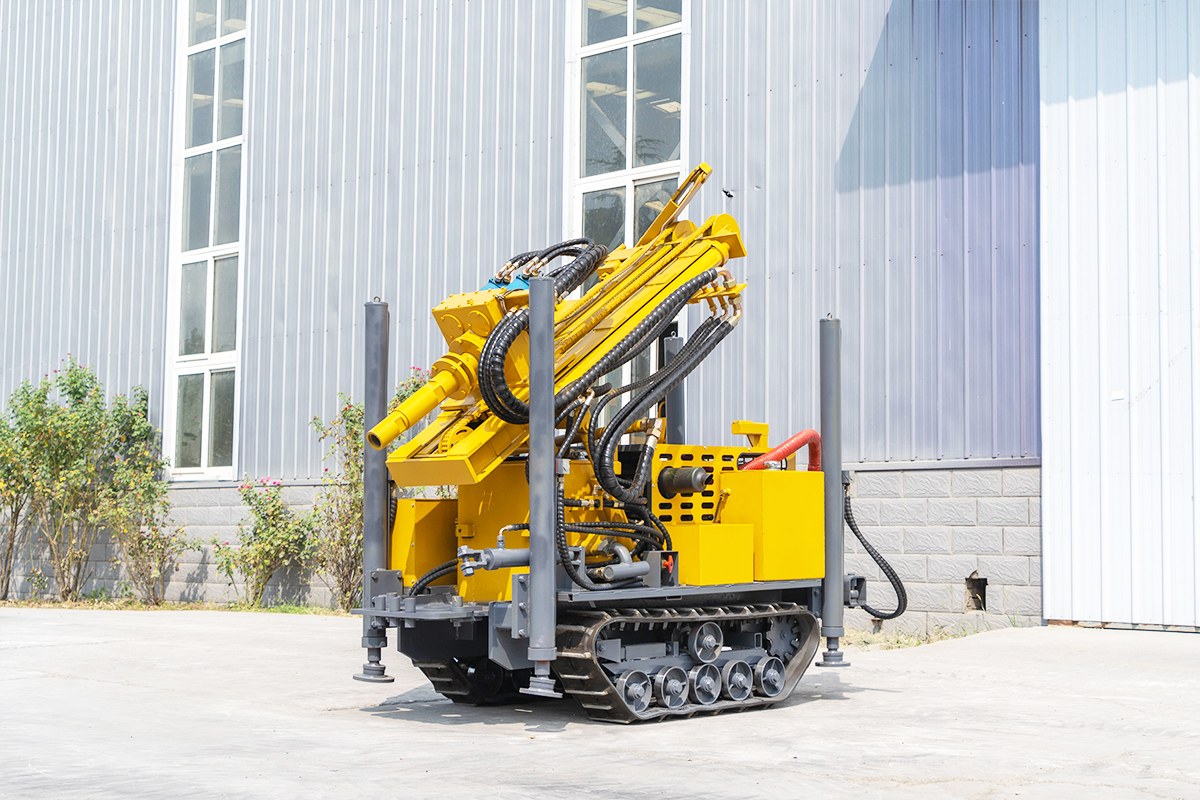

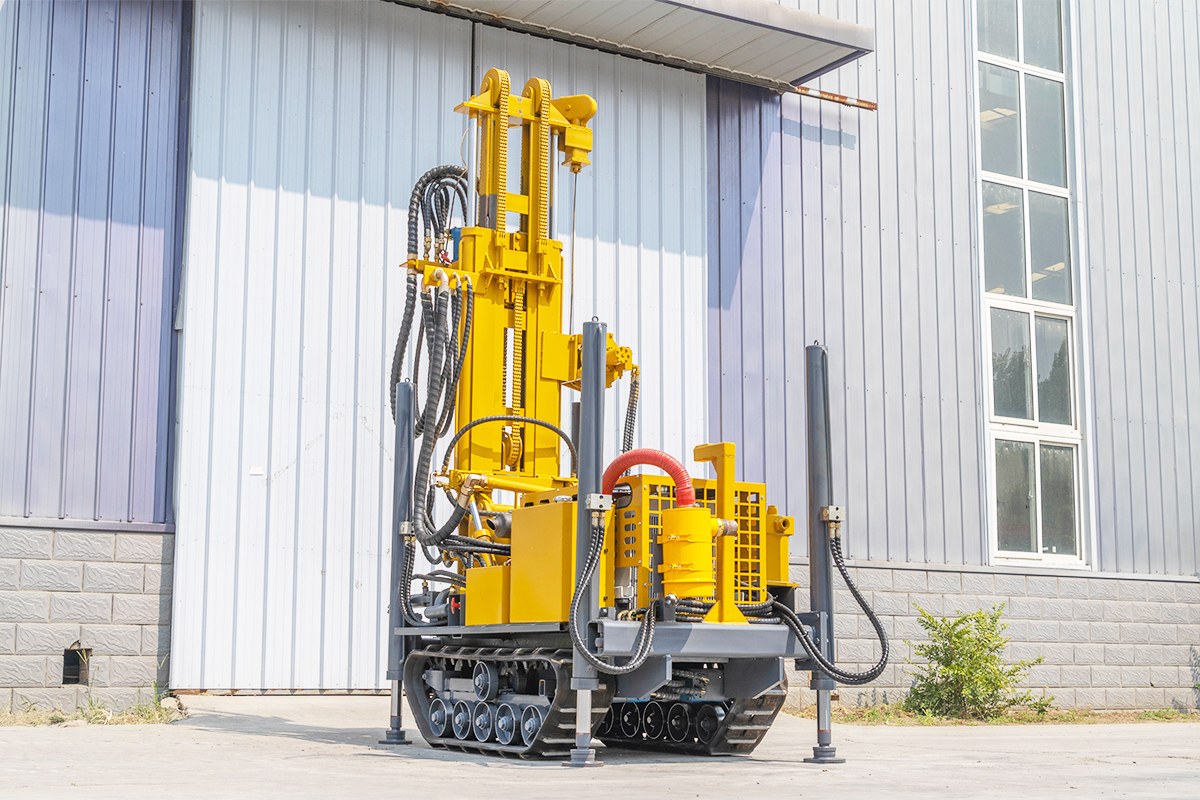

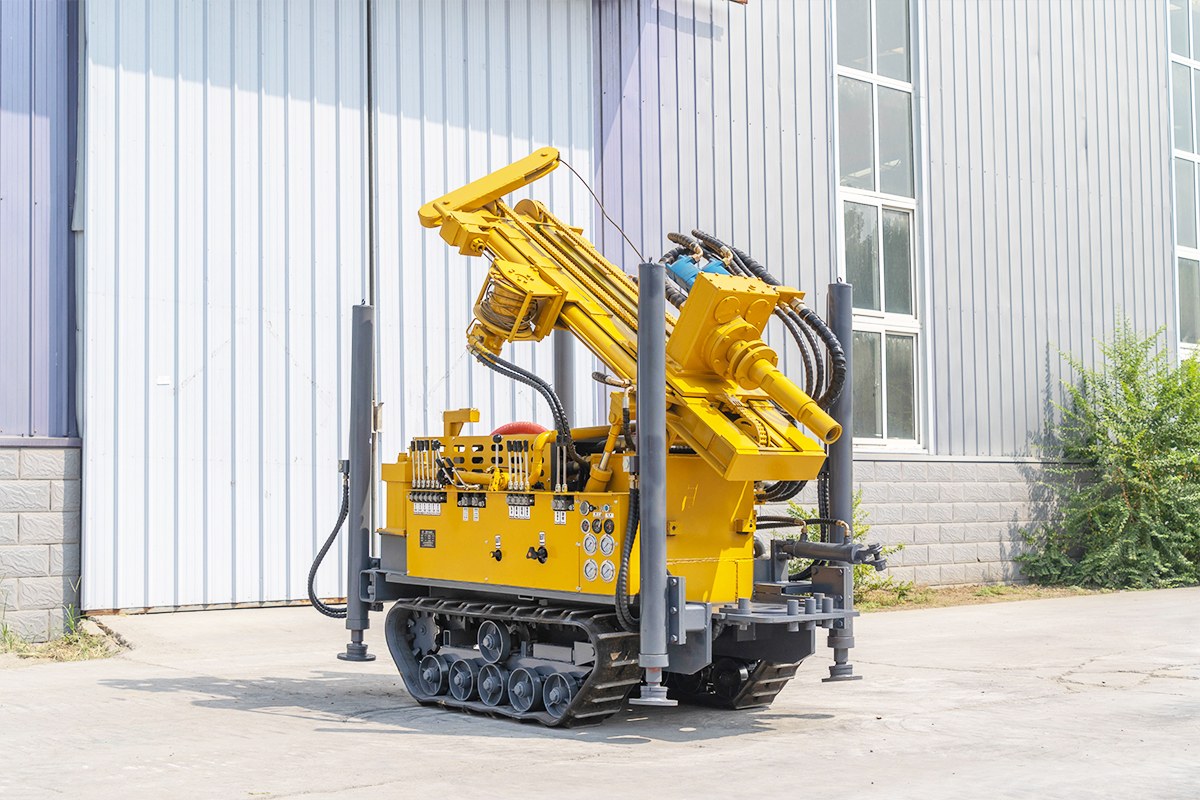

Hengwang Pneumatic Drilling Rig Series
HQZ pneumatic water well drilling rig is a lightweight, efficient and multifunctional drilling equipment.It is suitable for industrial, civil drilling and geothermal drilling projects.
>>> Product Details <<<
| model | HQZ-160L | |
| tower | 2 | m |
| Chassis | Rubber track | / |
| Drilling diameter | 138-203 | mm |
| Drilling depth | 160 | m |
| One-time advancement length | 2 | m |
| Walking speed | 2.5 | km/h |
| Maximum gradeability | 30 | / |
| Engine brand | Yuchai | / |
| Engine power | 73 | kw |
| working pressure | / | mpa |
| Air consumption | / | m³/min |
| Drill pipe diameter | 76/89 | mm |
| Drill pipe length | 1.0/1.5/2.0 | m |
| Lifting power | 12 | T |
| Swing speed | 50-110 | rpm |
| Rotating torque | 7800 | N.m |
| Dimensions | 2300*1200*1900 | mm |
| weight | 2.6 | T |
This product is continuously improved as technology advances. The difference between the parameters and the actual product is subject to the actual product.
Submit the form for more parameters and quotes.
Whether you need a standard machine or a custom solution, our engineers are ready to assist. Please provide as much detail as possible so we can quote accurately and quickly.
