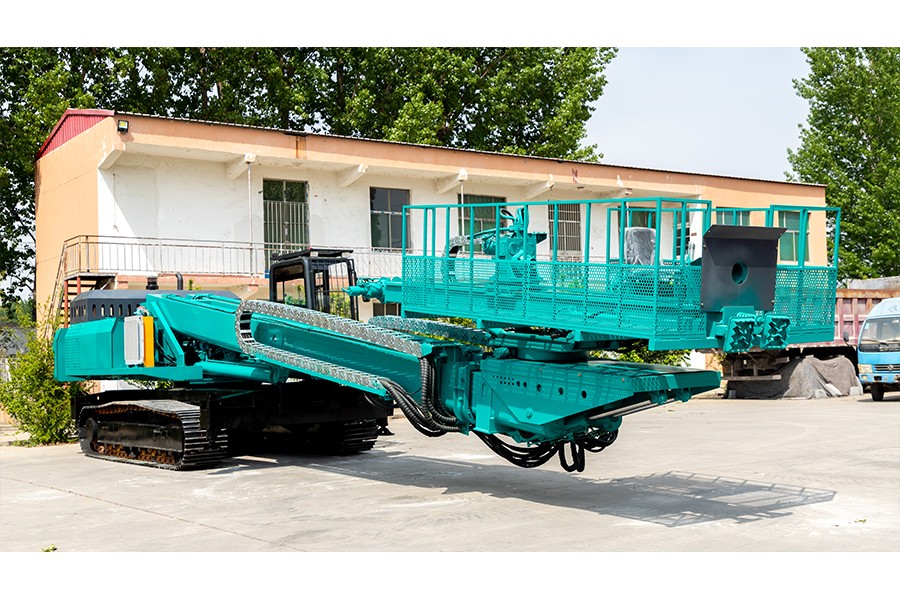

The anchoring rig serves as a crucial tool in addressing landslide and dangerous rock mass anchoring projects, primarily involved in the prevention and mitigation of various geological disasters in hydropower stations, railways, and highway slopes. It is especially well-suited for high slope rock mass anchoring projects. Additionally, it finds applicability in urban deep foundation pit support, anti-floating bolt and foundation grouting reinforcement engineering holes, blasting holes for blasting engineering, high-pressure jetting piles, tunnel pipe shed support holes, and more.
This versatile rig plays a significant role in reinforcing unstable slopes, securing rock masses, and enhancing the stability of geological formations. It offers a reliable solution for addressing geological hazards in critical infrastructure projects like hydropower stations, railways, and highways.

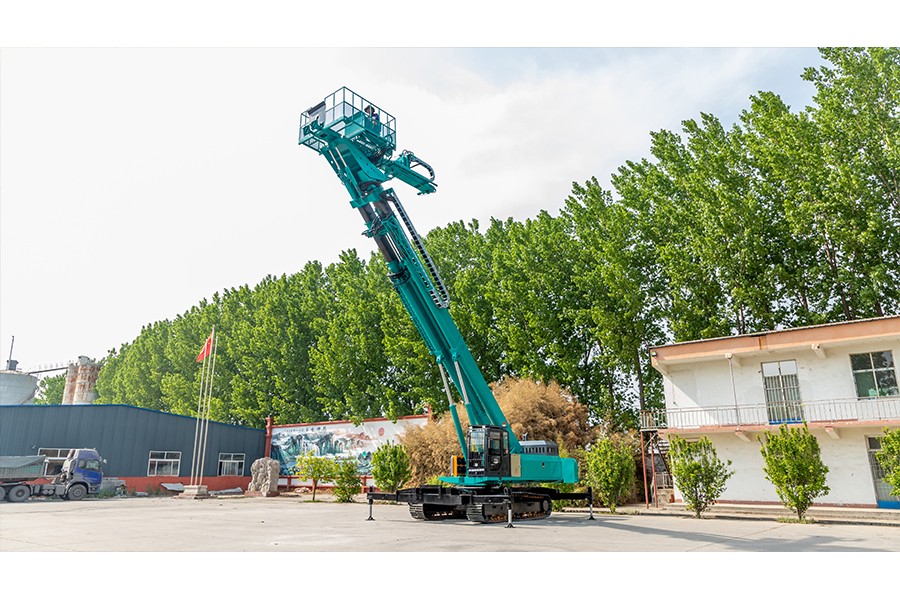

| maximum vertical height | 25m |
| Overall dimensions of crawler chassis | 4500*3000 |
| Track shoe width | 600 |
| engine model | YC6J125Z-T21 (National Second Yuchai six-cylinder engine supercharger) |
| Engine maximum power/speed | 130kw / 2300r/min |
| electric motor | 55kw (with multi-function distribution box) |
| Lower slewing bearing | 1.4m; 360 degree rotation; double planetary reducer |
| Upper slewing bearing | Corson 21 integrated plate: working 180° |
| Hydraulic oil pump | R1-63/63/32-high pressure special pump |
| Big frame | Double layer frame |
| Hydraulic legs | Four hydraulic H-shaped legs |
| support arm | Three sections (both arms) |

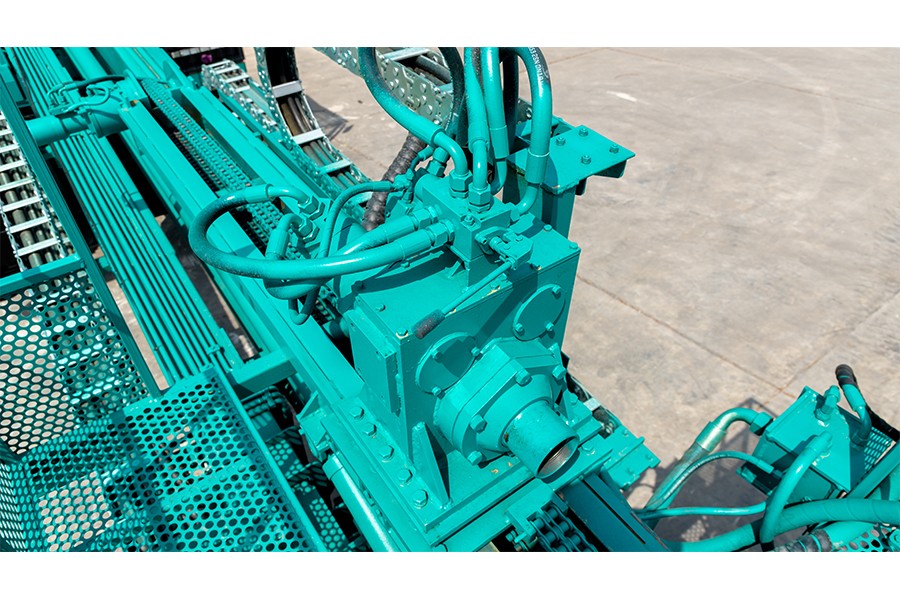

| Power Head | Dual hydraulic motor power head, adjustable speed, powerful power |
| drilling angle | Can drill flat holes/can drill oblique holes/can drill vertical holes |
| Drilling diameter/depth | 0-300mm/0-40m |
| Chain carriage | Stroke 4m; Pressurized power: planetary power |
| Drill pipe propulsion and lifting power | / |
| Hydraulic system radiator | YS-27A (Hengsheng Lida) |
| encircle | Fully enclosed (including engine cover) |
| Counterweight | Solid counterweight; retractable 1 m |
| weight | 31.8T |
| driving cab | high-end cockpit |
Whether you need a standard machine or a custom solution, our engineers are ready to assist. Please provide as much detail as possible so we can quote accurately and quickly.
